The Angle Iron round flange profile is as an integral part of light
steel frame is roll-formed from Hi-Tensile GI steel. With its
advantage, it is very popular in the present market, The Steel
angel is widely adopted in Building construction Industry –
commercial and residential. The normal thickness of L angle can be
from 1-5mm.
Our Angle steel round flange making machine change the traditional
flange production way, The most advantage of this hydraulic angle
steel flange machine is the production efficiency increased and the
labor cost reduced too much. With its high efficiency, safety and
reliability, it is very popular in the present market.
Main Parameter - Angle steel Round Flange making machine

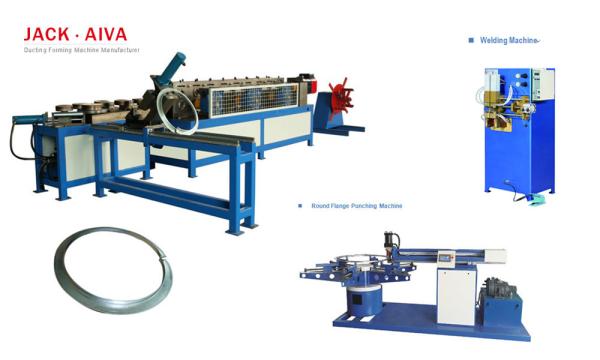

The angle steel round flange making machine is including three
parts production deice as following,
- Round Flange roll forming machine
The round flange with rivet holes can be finished by this roll
forming machine, the raw material is GI Steel coil.
- Round flange holes punching machine
The round flange connection holes can be processed by this machine,
it is controlled by servo system.
- Welding machine
Before Punching connect holes on the flange, the round flange needs
to be welded, so that to guarantee the exact holes position on
round angle flange.
Main parameters - Angle steel Round flange Roll Forming Machine
| ITEM | CONTENT |
| Profile roll formed | Round steel angle profile |
| Forming roller station quantity: | 6 Stations |
| Forming roller | Cr12MoV, AFTER treatment. HRC58º-60ºc |
| Roller shaft | Diameter Ø60mm, 40Cr steel material, quenched and tempered fine
grinding. |
| Station side steel plate thickness | 25mm, with world famous brand bearings |
| Main motor | 7.5kw |
| Punching rivets holes device | Diameter 5.2mm |
| steel Angle bending device | 3 sets forming rollers technology |
| Hydraulic cutter | hydraulic die cut. (45 degree), Hydraulic station power 4KW. |
| Electrical system | The line speed is controlled by frequency inverter. (With PC
control). Auto Cut-to- Length controlled |
| Weight (KG): | About 3900kg |
| Line speed | Adjustable, 0-10m/min |
| Run-out table | length 6000mm; width 100mm |
| Line Dimension (L*W*H)mm: | 6800×2300×1500 |
Application of the Steel angel Round Flanges
The angle iron round flange can be composed of various
force-receiving members according to the different needs of the
structure, and can also be used as a connecting member between the
members. Widely used in various building structures and engineering
structures.
Steel angel material thickness: 2.0-4.0mm
Steel angle sizes: 20mm-40mm * 40
The custom angle steel making machine can be prepared according to
client’s request.
