Square Duct Manufacture Auto Coil line VII

Square Duct Manufacture Auto Coil line VII for the Manufacture of Air-condition Rectangular Ducts

Duct line AML-VII is one of our latest coil line.

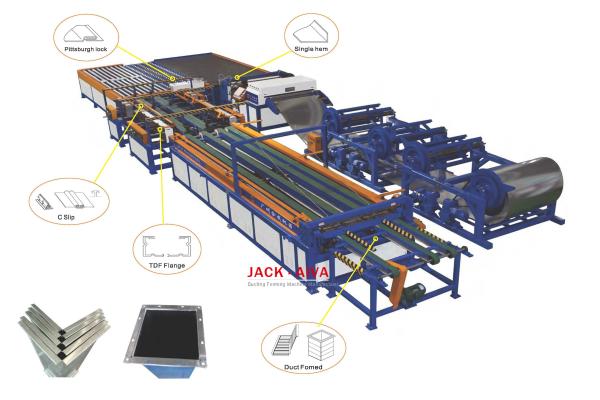

The "L" or "口" type air duct is finally formed by uncoiling, punching angle, cut to length, Pittsburgh seam forming, Flange forming (TDF flange / Angle Iron flange / "C" flange) and automatic bending.

Duct line AML-VII is one of our latest coil line. With U-shaped structure, occupies a small area, greatly reduces the transfer time of sheet metal, high efficiency, take only 20~23 seconds for each "L" shape, and daily processing capacity can reach 800-2500 suqare meters. After processing, the Pittsburgh seam is in front, and the short side of the large-sized air duct will be bent first, so this coil line is most suitabe to produce the large-sized air duct.

Rectangular duct manufacture auto coil line is special for manufacture making HVAC square air ductwork from GI metal sheet coil.

It’s a new one completely in the present market, with full functions, working stable and automatic control system. The following is the shape of flange, we can design the just shape according to customer’s request.

Flow Chart- Rectangular Duct Forming Machine VII or Duct manufacture auto coil line

Main parameters- Square Duct Manufacture Auto Coil line VII

Basic Component- Square Duct Manufacture Auto Coil line VII

- Power DE-coiler: 2 sets

- Leveler, grooving roller, shearer: 1 set

- Punching moulds

- Punching holes on TDF flange (optional)

- Punch tie rod hole for duct bracing (optional)

- Power feeding table (the front part): 1 set

- Pittsburgh lock former

- power feeding table (2# part)

- Duplex angle-iron or standing seam flange former

- Duplex TDF Flange former: 1 set

- TDF hydraulic folder: 1 set

- Duct transmission rack 1set

- Electrical control system: 1 set

TAG: Duct manufacture auto coil line, Rectangular Duct coil line, Square Duct Manufacture line, Duct Auto Coil line, Rectangular Duct Auto Coil Line, Square Duct Manufacture Auto Coil line VII

We are professional in the exporting, designing and manufacturing of quality duct work fabrication machines.

Our strict emphasis on quality is combined with the latest technology to offer our customers a competitive edge. Since its inception, the company has established a reputation for itself as a supplier of quality products. We focus on quality and aim to achieve total customer satisfaction, both in the products we offer and in the service that follows.

Our objectives and goals have been to attain the highest technical performance at the most competitive prices. The power of Us is the confidence, delivering what is essential to compete and win. Apart from the competition we provide you with good service and a high technical support. There is more to efficient shop production than simply owning the right machine. And this is why so many machine shops benefit from their relationships with JACK-AIVA. Our staff of engineers actually creates specifications and design solutions for innovative metalworking products. The other advantage is in our complete, comprehensive technical support. Once one of our machines is in your shop, it is supported forever.
