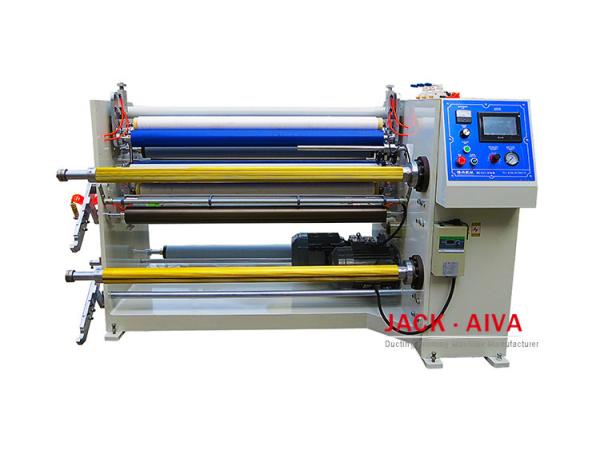

    CNC PVC Film Slitting Line Flexible Duct Machine

    Ask Lasest Price
    Brand Name : Jack-Aiva
    Certification : CE SGS
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T L/C
    • Product Details
    • Company Profile

    CNC PVC Film Slitting Line Flexible Duct Machine

    CNC PVC Film Slitting Line


    Brief Introduction

    Slitting paper tape slitting machine (white paper tape slitting machine) suitable for kraft paper tape slitting width can be adjusted arbitrarily.

    It is especially suitable for slitting paper tape. The machine can punch holes, press lines and slitting at one time. The production efficiency is high and the speed is fast.

    The machine can slit BOPP,OPP,PET,CPE,PVC aluminum Foil and paper etc the roll style material.

    Main Parameters

    ITEMCONTENT
    Slitting machine Type1600mm
    Motor7.5KW;
    Machine Total Power10kw
    Recoiler / Decoiler:diameter 75mm, with 2pcs pneumatic shaft
    Round blade (UP + DOWN):According to client request
    Pneumatic air6KG
    Decoiler Pneumatic brake:20KG
    Magnetic powder clutch:10KG
    Max Fabric Coil width:1500mm
    Fabric Coil Max OD:800mm;
    Max Re-coiler diameter:450mm
    Slitting width:Adjustable
    Slitting tolerance:+/-0.2mm (raw material thickness should be exact.)
    Slitting speed:0-180m/min.
    Machine dimension:2600* 2700* 1200mm
