Slip on Flange Roll Former Machine
Slip on Flange Roll Former machine for the Manufacture of Air-condition Rectangular Ducts Fittings
This is the TDC flange without Reinforce Corrugation or beading.
The advantage of this design can reduce the raw material cost.
Our duct Slip on Flange Roll-forming machine was specially designed
to manufacture HVAC flanges of 20mm, 30 mm or other size for medium
and large producers of square HVAC duct.
Slip on Flange Roll-former consists of the following parts. The
vertical de-coiler, Strip entrance, and straightening device, roll
former and round saw style cutter, precisely according to the
parameters entered. Automatic line control system can be connected
to central production management as well. The line can also be
equipped with a device for injection of sealing mastic directly
during the forming process.
Slip on Flange is one of the two universal rectangular duct flange
making systems in the world. It can save time and material
drastically with its well-seal, strong and durable joint structure.
So Slip on Flange Roll Form Machines is much suitable for producing
a duct with a large sectional area. Many famous buildings in the
world utilize this kind of structure in the ventilation system

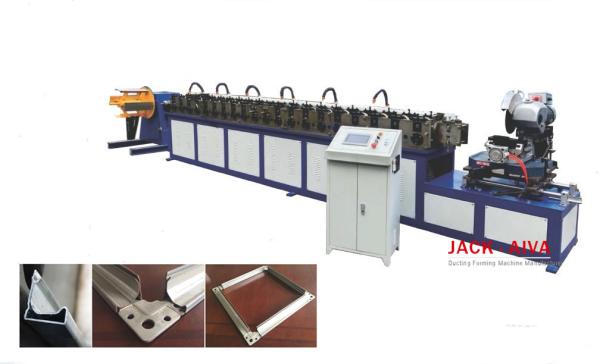

Slip on Flange Roll Former Machine For Rectangular duct flange main parameters
Slip on Flange Roll Former machine is for the Manufacture of Slide
on flange on all straight ducts and Air-condition Rectangular Ducts
Fittings. Now we have the ability to supply the TDC flange from
15mm to 50mm. And thickness can be from 0.5-1.2mm.
Our manufacturer is the earliest and biggest one in china to design
and manufacture the Slip on Flange machine. Our flange roll former
is for manufacturing TDC-15 mm, TDC-20 mm, TDC-30, TDC-40 wide
slide on frame flange etc. custom TDC flange profiles can be
offered on request. Custom Slip on Flange Roll Form Machines are
according to clients’ requests!
Main Parameters
| Raw material: | GI steel strip, carbon steel strip, etc |
| Raw material width (mm): | (according to the client’s sample or drawings) |
| Raw material thickness range (mm): | 20 mm profile: material thickness 0.6 - 0.8 mm galvanized sheet 30 & 35 mm profile: material thickness 0.8 -1.0 mm galvanized sheet 40mm profile: material thickness 1.0 - 1.2 mm galvanized sheet (Or designed according to the client’s requirement) |
| Forming roller station quantity: | About 15 Stations |
| Motor power | Main motor: | 4kw, AC380v, 50HZ |
| Cutting motor: | 1.75kw, 2xAC220v, 50HZ |
| Weight (KG): | About 2000 |
| Line Dimension (L*W*H)mm: | 4850x700x1500 |
| TDC flange profile: | (according to the client’s sample or drawings) |
Slip on Flange Installation
HVAC Slip on Flange without Reinforce Corrugation beading
The advantage of Slip on Flange without corrugation beading on
bottom can reduce the raw material cost.
The slip-on duct connections enable the fast, cost-effective and
tight connection of rectangular air ducts. Almost any size and
sealing class is possible. Comprising of slip-on duct flanges of
different sizes and a variety of different corners.
This flanges are suitable for sealing class C or D (Premium-Flange)
without additional sealing measures along the longitudinal edge of
the flange
Others can be customized designed.
