TDF Flange Duct Fabrication- Standard solution

TDF Flange Duct Fabrication Machines- Normal

TDF (Transverse Duct Flange) TDF is a flanging machine that consists of forming a flange profile on the duct ends, hence made out of a sheet from which the duct is fabricated.

The transverse duct flange connections also can enable the fast, cost-effective and tight connection of rectangular air ducts. Almost any size and sealing class is possible.

The normal high of this flange is 34±0.5mm, TDF corner with 4-bolt connection systems allow for the appropriate connecting frame to be produced for every requirement (duct size, volume flow, pressure ratios, air tightness). Flanges and corners are also available made of stainless steel (AISI 304 or AISI 316) or GI steel.

ADVANTAGES:

· All the production process is done in the factory and it arrives ready to install, in some cases the straight ducts are delivery in two parts ("L" sections) for reduce the cost of freight.

· This provides a solid and strong metal connection with a substantial savings in labor cost.

· Easy and quick installation No specialized labor or tools are required.

· Good presentation.

· Re-usable in case of moving or system expansion

· Less leaks due to sealing system

· Intermediate reinforcement is not required generally.

· Easily adaptable to any heights for duct installation

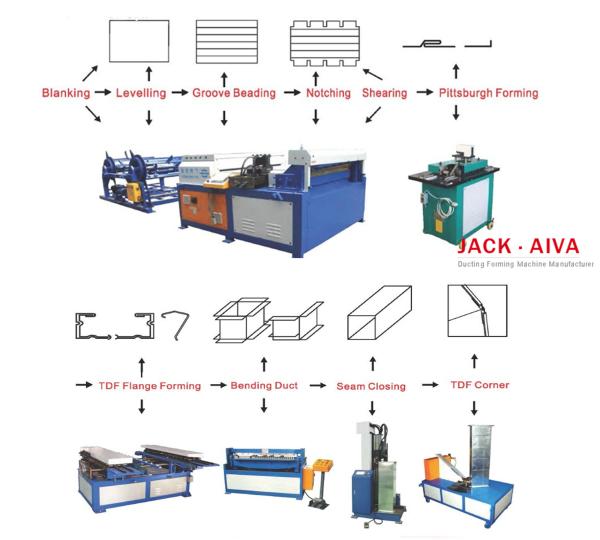

The TDF fabrication machines are including auto line 3, Pittsburgh lock machine, TDF flange machine, TDF folding machine, seam closer, corner inserter, etc. The ducts manufactured are up to standard and reliable.

Main Parameters- Economical TDF duct manufacturing machines

- Employee: 5-8 skilled operator

- Duct production capacity: 600m2/8hours

- Power: 22kw

- Production area: 150-200m2

Main Components- TDF Economical duct manufacturing machines

TDF Flange Duct Fabrication- Normal solution
