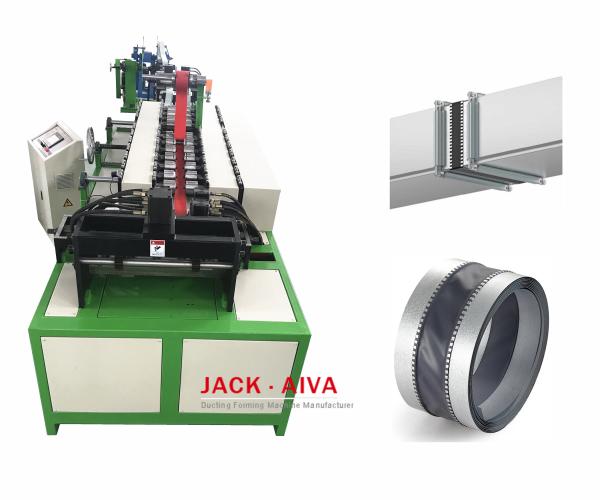

Production Line to manufacture HVAC Duct flexible connectors
The automatic flexible duct connector production Line is consisted
of de-coiler, hydraulic punching, roll former and notching, cutter
then the belt recoiling. If client has the large quantity
production about the flexible duct connectors, this is the proper
solution. The final products included punching anger and cutter all
can be finished by one line.
The normal raw material of Flexible duct connector are the GI steel
sheet and Fire-Resistant Fabric GC-PV (Polyester Vinyl),
GC-SI(Silicone),GC-NE(Neoprene),GC-CV(Canvas). It can be installed
between fans or similar equipment.
Technology Flow - HVAC Duct Flexible Connector Machine
Duct flexible connector Roll Forming machine mainly consists of
conic, guide equipment, leveling system, punching, roll forming
system, cutting system, stacking equipment, hydraulic station,
electrical control system.
Power Un-coiler (2sets)--- hydraulic holes punching -- Main Roll
Former --- Notching & Cutter -- Re-coiler
Main Parameters- HVAC Duct Flexible Connector Machine
| ITEM | CONTENT |
| Raw material | GI STEEL DC51+Z; 0.4-0.8mm It can be designed according to client request. |
| Line speed | 5-7m/min |
| Forming roller stations | 12 stations x 2 (double line stations on main roll forming machine) |
| Forming Roller material | GCR15 as raw material ,hardness HRC60-62 after treatment, |
| Shaft material | Quality steel Ф40mm, 45# steel |
| Main motor | 3kw + 0.75kw |
| suit for material size | - Flexible fireproof Fabric width range (middle side): 100----300mm;
- metal strip width range: 50-150mm;
- metal strip thickness range: 0.4-0.8mm
|
| Main machine sizes | 3500*1300*1300mm |
| Weight | 2500kg |
HVAC Flexible Duct connector Application
The Flexible Duct Connector is designed to enable flexible joints
of any size to be easily and economically formed in the
factory or on site. Flexible joints are installed between fans(or
similar equipment) to prevent the transmission of vibration,
noise and rattles to the remainder of the air conditioning system.
Advantages
- Variable self-assembly system for construction of flexible duct
connectors
- Process different PVC widths without the need for changing ground
plate
- No sealing tape needed for virtually leakproof duct connection
- Gebhardt-Stahl flex.x-PVC and flex.x-Fusion Tape have been
laboratory tested to DIN EN ISO 846 and meet the requirements of
VDI 6022
- Internal fold ensures constant contact pressure down each length
and thus provides perfect suitability for duct connection by means
of G-clamps
- Compatible with Gebhardt Punch Press
- Suitable for building rectangular and circular flexible duct
connectors
